product description

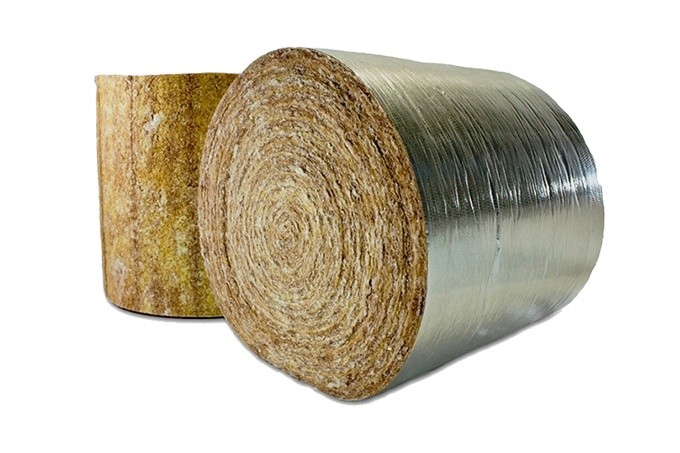

This TextraFINE? glass fiber resilient blanket produced by ANCO Products Inc,US is made by a special process that bonds the filament glass fibers together in a random direction. The adhesive is a special thermal setting resin. It has excellent mechanical properties such as resilience and tensile strength.
Properties
Physical Property | Unit | Technical Indicator |
Avg. Density | kg/m3 | 16±10% |
Binder Content | % | 20±5(weight) |
Avg. Tensile Strength | kPa | ＞6.1 |
Thermal Conductivity | W/(m·K)(0℃) | ≤0.04 |
Resiliency Factor | ＞0.44 | |
Water Content | % | ≤0.5 |
Low Temperature Resistance | ℃ | -198 |
Dimensional Tolerance | Width: +7mm,-0mm Length: +2%，-0% Rebound thickness: +15mm，-0mm | |
Width | mm | 1200 |
Standard Thickness | mm | 75、85、100、150 |
Length | m | On Request |
Listing above is the standard dimension. Special models are available.
Product Application
Applied in the annual space of double wall tank. TextraFINE is widely used in tanks and equipment insulation all over the world. It has many references in LNG/LPG/liquid nitrogen tanks.
Packing and Storage
(1) Double layer polyethylene film;
(2) Store in dried indoor place.
Application and Cautions
(1) Do not use hook or horned tool which may damage package or blanket.
(2) Ropes, plywood or other auxiliary tools can be used to avoid blanket breaking during application.
